LUNG CANCER
A Handbook for Staging, Imaging, and Lymph Node Classification
by Clifton F. Mountain, MD; Herman I. Libshitz, MD; and Kay E. Hermes
Contents | About the Author(s) | Dedication and Acknowledgment
 Illustrations and Imaging
page 29

Stage IA

Fig. 34b: Computed tomographic scan of the lesion in Fig. 34a, T1 N0 M0. The lymph nodes were not involved.

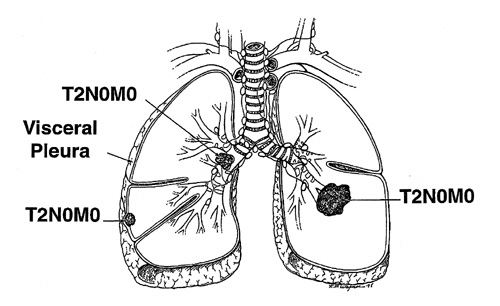

Fig. 35: Diagram, stage IB. Patients with T2 primary tumors and no evidence of lymph node metastasis, the T2 N0 M0 subset, are assigned to stage IB.

« previous page | next page »
